Volleyball

Volleyball court dimensionsAll volleyball posts MUST be secured to the floor when in use either by way of floor anchors or sockets in the floor slab. This results in a number of different layout drawings showing the fixing location of different standards of posts.

We have included some useful drawings for download in the panel to the right hand side of this page:

  • Drawing CM-07 – shows the standard markings for a volleyball court
  • Drawing CM-12 – shows the anchor locations for Continental's "International" model volleyball posts
  • Drawing CM-26 – shows the anchor locations for Continental's "Club" model volleyball posts
  • Drawing CM-21 – shows the socket locations for SRX socketed volleyball posts.
  • Drawing CM-33 – shows the socket locations for SRX volleyball posts used in floor anchored T-bases (necessary in situations where top level posts are required but the floor slab is not thick enough to accomodate sockets)

Layout and run-off guidance for a badminton court:

Training Community Club Premier International
Minimum height over court (mm)
7500 7500 7500 7500 12500
Length (mm)
18000 18000 18000 18000 18000
Width (mm)
9000 9000 9000 9000 9000
Baseline to walls - min (mm)
1000 3000 3000 5000 8000
Sideline to walls - min (mm) 3000 3000 3000 3000 5000
Extra one side for officials and team areas (mm) N/A N/A 2000 2000 3000



Sport England data sheet

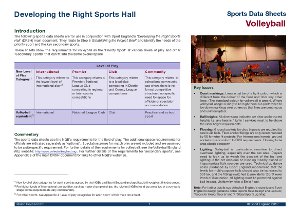

Sport England data sheet - volleyballSport England have released various sport-specific data sheets for key sports in conjunction with the National Governing Bodies. These sheets are intended to be used in conjunction with Sport England’s ‘Developing the Right Sports Hall’. They relate to Step 5 ‘Establishing the Project Brief’ and identify the needs of the priority sport and the key secondary sports. They show the requirements for the ’Priority Sport’ at various levels of play and how other ‘Secondary Sports’ can fit into the same overall space

You can download this data sheet from the Downloads section at the foot of this page.

Categories: Court markings and court dimensions

Downloads

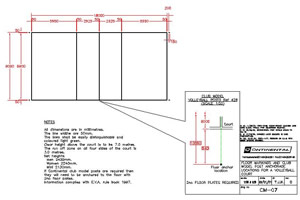

CM-07 - Volleyball court dimensions
Court dimensions and line marking drawing for a standard volleyball court
CM-12 - Anchor locations for Continental's "International" model volleyball posts
Drawing showing the locations of the gamespost anchors necessary for Continental's "International" model volleyball posts
CM-26 - Anchor locations for Continental's "Club" model volleyball posts
Drawing showing the locations of the gamespost anchors necessary for Continental's "Club" model volleyball posts
